Terex Hi-Ranger Bucket Truck
The Terex Hi-Ranger XT Pro 60/70 is a high-performance forestry bucket truck specifically engineered for speed and responsiveness in tree trimming and environmental construction. With a 75-foot working height, it provides MTM crews with the reach necessary for high-altitude vegetation management in challenging terrains.
Overview
In MTM's field operations, the XT Pro 60/70 serves as a primary tool for large-scale vegetation removal and infrastructure maintenance. This equipment is specifically leveraged for its ability to reach the tops of trees and navigate hard-to-access sites, such as roadside mileage projects. By combining a 75-foot reach with a specialized forestry configuration, it allows our crews to perform technical cutting and debris management with a focus on safety and efficiency for both the client and the environment.

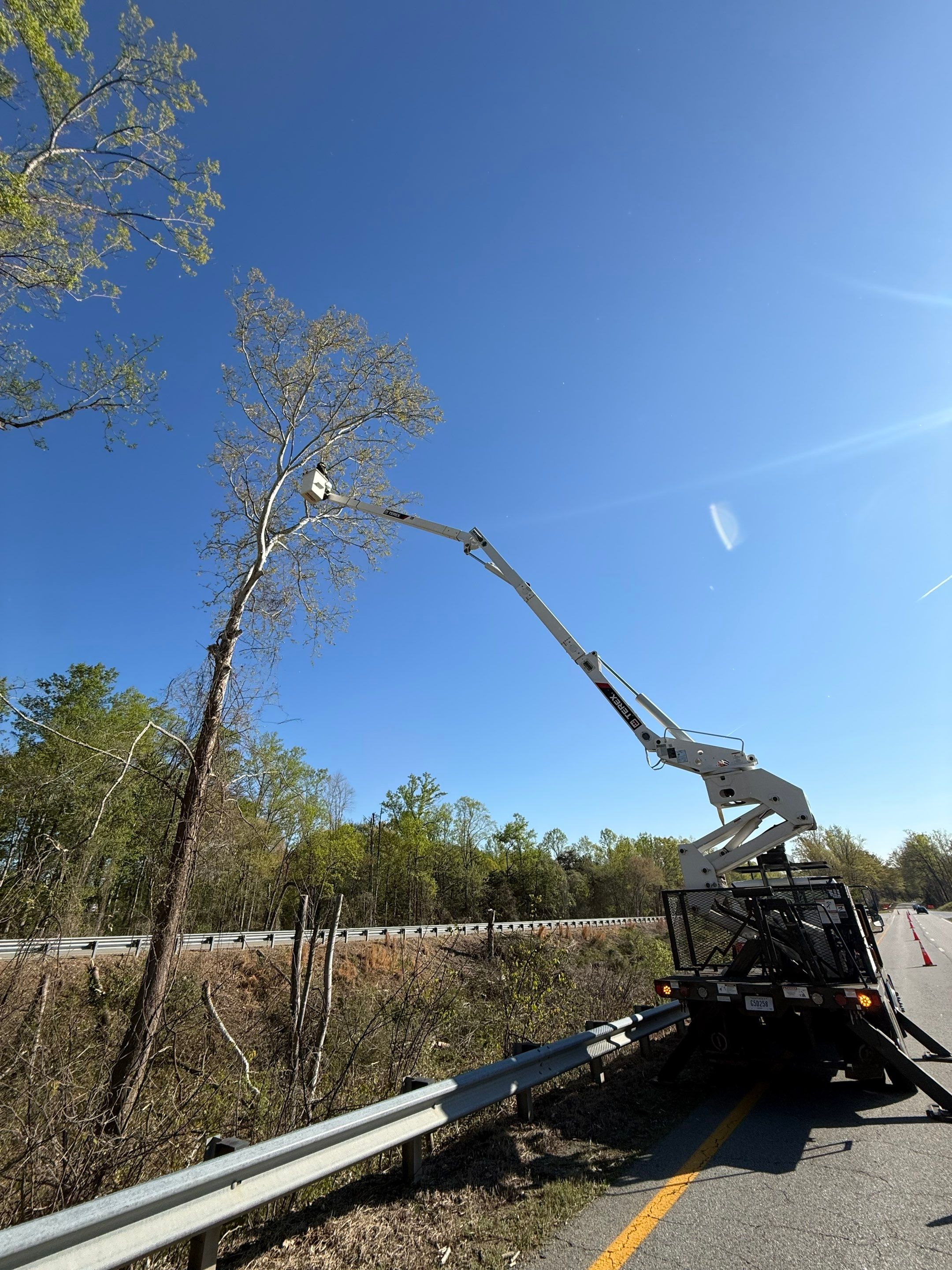

75-Foot Working Height
Delivers a maximum vertical reach of 75 feet (22.9 m), enabling technicians to access the highest points of tree canopies with precision and control.
Control-Plus "3-D" Single Stick
Provides operators with smooth, intuitive, and responsive maneuverability while working in tight vegetation — one hand controls the full range of boom motion.

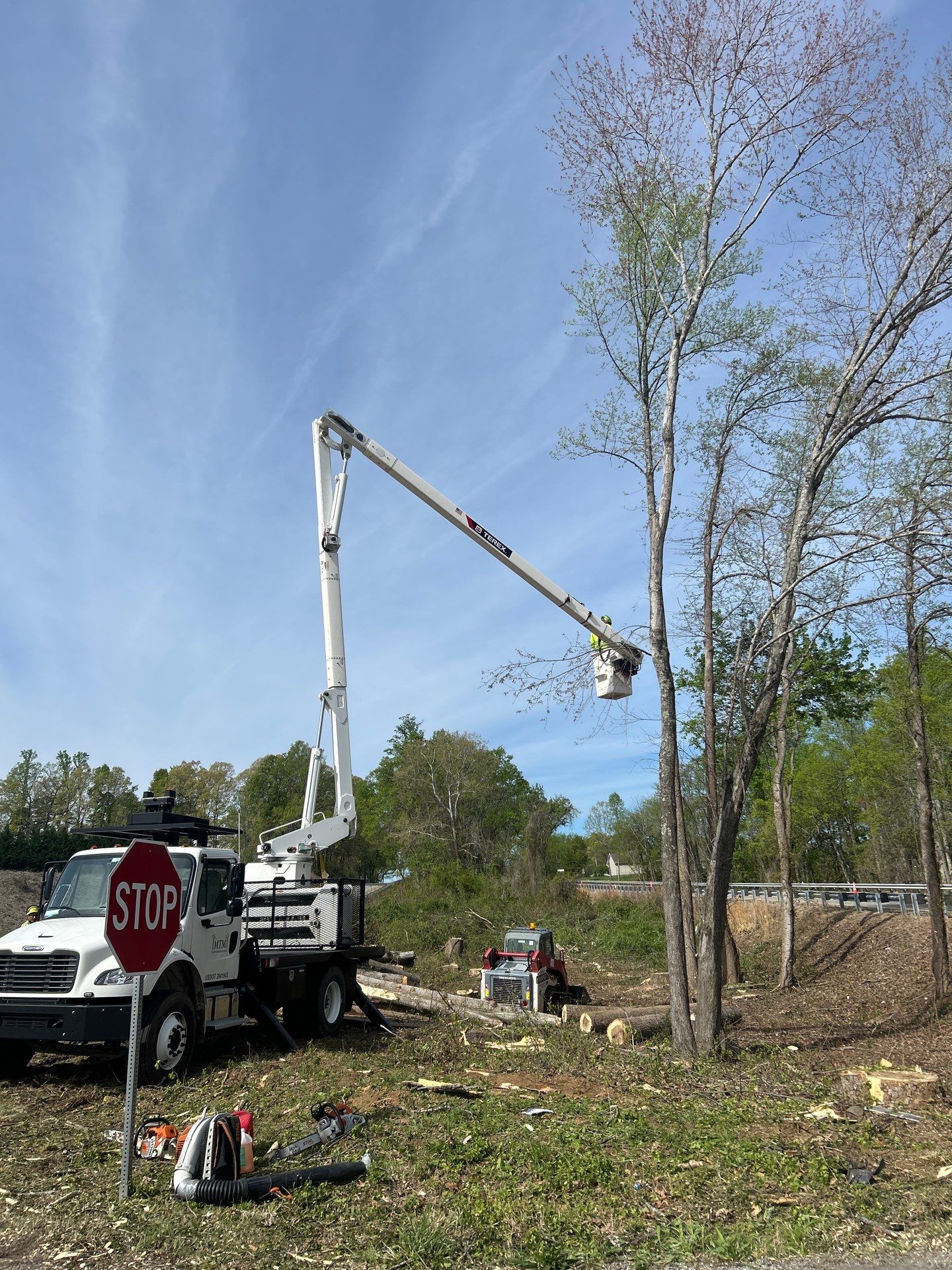

Continuous Unrestricted Rotation
Equipped with a worm gear rotation system that allows for 360-degree positioning, ensuring the crew can reach the exact work angle needed without resetting the truck.

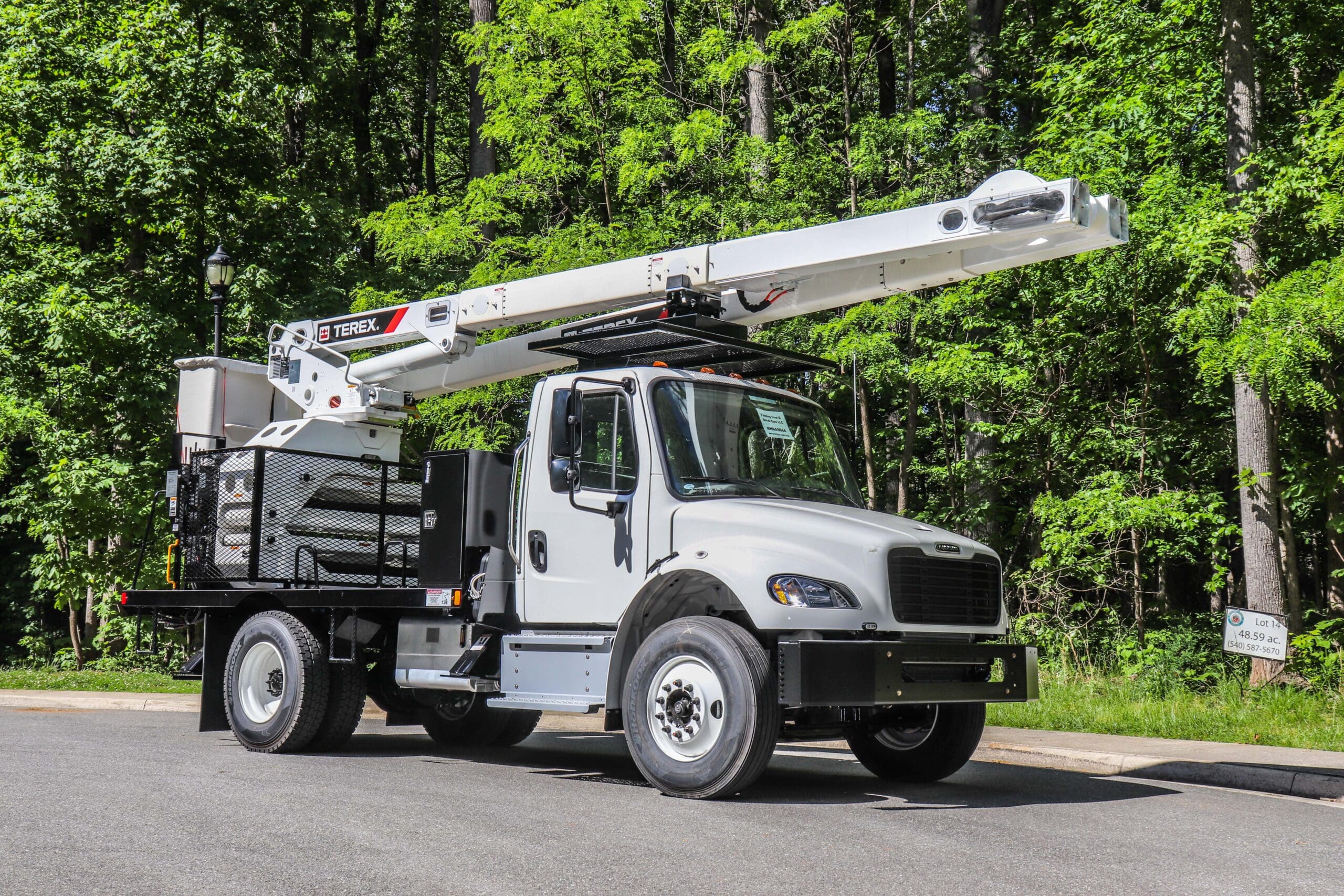

Side-By-Side Boom Configuration
Designed specifically for forestry productivity, this layout enhances speed and responsiveness for high-volume tree trimming with minimal downtime between positions.
Technical Specifications
Speed & Performance
- Working Height: 75.0 ft (22.9 m)
- Platform Height: 70.0 ft (21.3 m)
- Side Reach (Overcenter): 49.9 ft (15.2 m)
- Platform Capacity: 400 lbs
Design Features
- Platform: Side-mount 24" × 24" × 40" one-person platform
- Hydraulic System: Full pressure, open-center (33–40 gal reservoir)
- Upper Boom Articulation: 250°
- Lower Boom Articulation: 125°
Field Applications
MTM deploys the XT Pro 60/70 across diverse project types to ensure safety and efficiency:

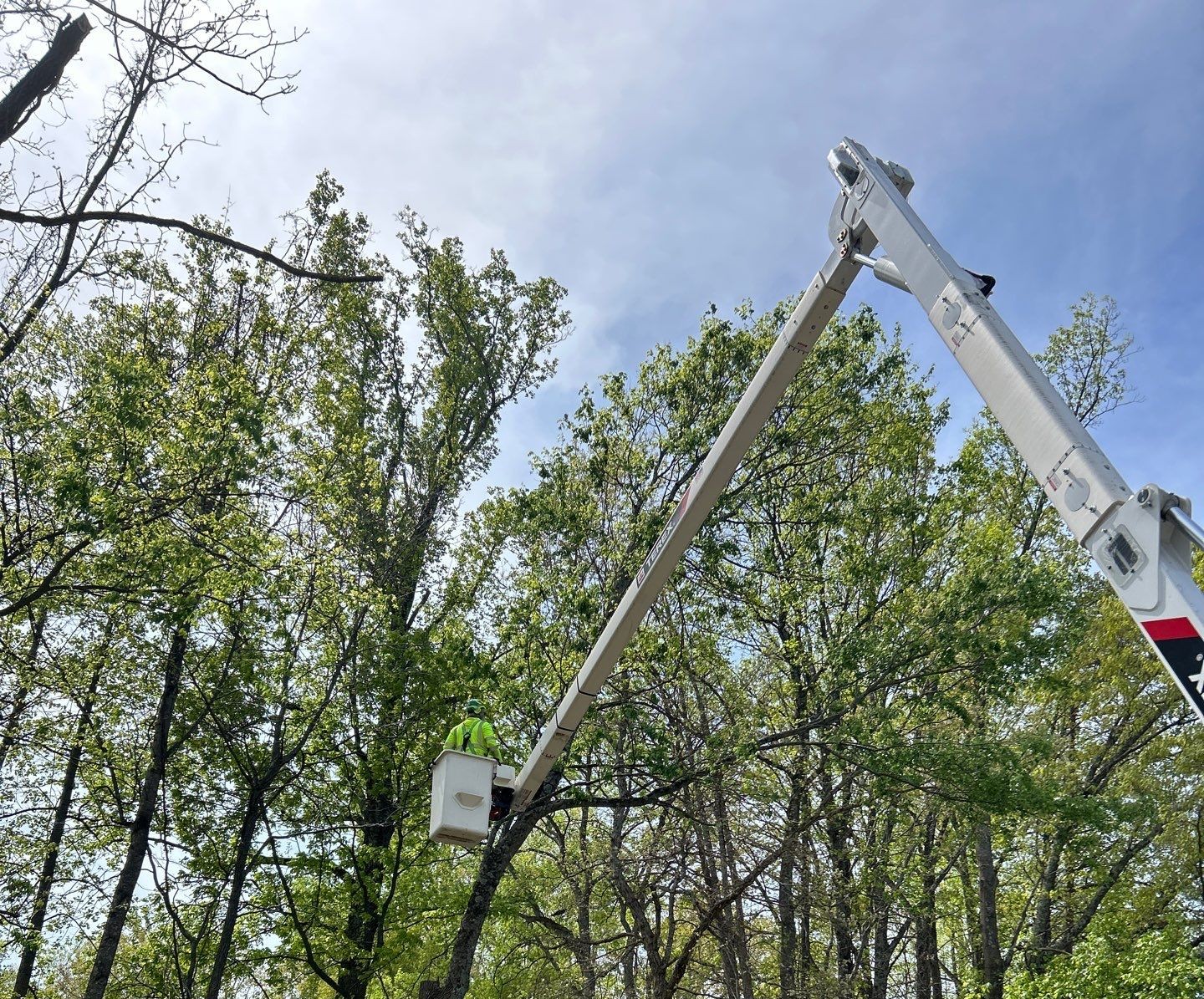

- Vegetation Management: Specifically used for accessing the tops of trees in hard-to-access places for precise removal or pruning.
- Roadside Safety (Mileage Projects): Clearing overhanging vegetation from roadways using the M2 Freightliner chassis to ensure clear passage for traffic.
- Infrastructure Support: Fixing telephone wires and setting up large-scale project banners or signage.
- Environmental Construction: Supporting site-specific work like the MSU Field Project and stream restoration efforts.
The Terex Hi-Ranger XT Pro 60/70 represents MTM's commitment to deploying specialized, high-reach equipment that keeps crews safe and productive at elevation. Its combination of 75-foot reach, 360-degree rotation, and forestry-optimized boom configuration makes it the go-to tool for large-scale canopy work and roadside mileage projects across MTM's operations.
